Lookee here, itsa project!

Not that I’ve had any shortage of projects lately, but they’ve all been workshop or home related. Now that the workshop is “done,” I’ve finally found a little time to return to tubes.

Many blogs ago, I posted about using switch mode power supplies (SMPS) in multiples to provide B+ for more typical tube operating points. That’s ‘typical’ as in 300V+, not the 48V of El Estudiante or other similar low voltage designs. I don’t see anything wrong with low voltage if it sounds good and meets a design goal, but it does hinder the tube and topology options.

A few posts later, and still stuck on the stacked SMPS idea, I proposed a tube that might do well as a linestage with only 100-150V B+. The 6AF4 is a 7-pin triode with a modest Mu and low enough plate resistance to drive amps with a 20kohm+ input impedance without the assistance of transformers or followers. In short, it could make a really simple preamp with a really simple power supply for a really modest cost.

And that’s what I did:

The power supplies V1-V3 are XP Power VCE05 48V modules on a small PCB with some small capacitance filtering on the output (10uF). The heater supply for the tubes (one per channel) is a small 12V Meanwell IRM-05-12. Total cost as of this post is about $45. Current cost on a Hammond 269BX (300V CT) is $55 and you’d still need to rectify and filter to make a workable supply.

With the low parts count, sleeper tube, and inexpensive (and simple) power supply, this is a great cheap and cheerful project. It also sounds quite nice in use so far. I’ll update with a more complete write up including operating points, construction tips, and listening impressions soon!

Posted on

No workshop, no time, what do?

Having recently moved and had a second kid, tubes should be the last thing on my mind, right? Maybe. Then again,personal hobbies should always have a place in day-to-day life, and especially when that life gets a little chaotic. Such hobbies are about exploration and continuously challenging oneself. And yes, sometimes a little bit of dorky obsession.

Hence, with all my tools in boxes and precious little spare time, I have a great opportunity to revisit quick, cheap, and cheerful tube design (at least this is what I tell myself).

Last spring I posted about a sleeper tube that looked to me like it had potential in a simple linestage. The single triode has modest B+ requirements, low Mu, and respectable transconductance, exactly what we might look for in a bare-bones capacitor coupled preamp. To boot, the tube is called 6AF4. AF. How could I resist?

Here are the plate curves, highlighted where it looks pretty good to me:

It looks like we could work with as low as a 100Vdc supply here, but plate resistance appears lower and more consistent if we have 150Vdc on tap. With 150V B+, a 7.5k loadline passes right through the middle of my target zone of operation, intersecting the y axis at 150V/7500 ohms = 20mA. A 220 ohm cathode resistor looks like a good place to start and should allow a dozen or so milliamps through the triode. The result, fleshed out, looks something like this:

Back in my original post on the topic, I mused about 48V switching supplies wired in series to generate a B+. That’s a monkey I still haven’t gotten off my back, so I drew up a little PCB based on the XP Power VCE05 module. This is a $12 encapsulated AC/DC converter that puts out 100mA+ at 48V. Three in series gives ~150V in a very compact footprint and at a cost comparable to a small Hammond EI transformer.

Although a pair of 6AF4s will only need 25mA or so, a pair of these boards would (hypothetically) be capable of powering a small power amplifier (300V @ 100mA). It’s worthy of some exploration.

Posted on

A cheap sleeper tube thought experiment

One day I was combing through tube characteristics using the parametric search function in the Tube Data Sheet Locator desktop app and I came across an interesting 7-pin triode. As luck would have it, I happened across a couple at a swap meet about a week later when the tube type was still fresh in my mind. I bought them, thinking they might be interesting to experiment with.

The 6AF4 is a 7-pin indirectly heated triode. I found the 6AF4 interesting because of its fairly low amplification factor (Mu of 15), decent transconductance, and high perveance. These characteristics suggest that a really simple and fairly low voltage preamp may be within reach. Check out the datasheet here (link to PDF).


I’d power this with a pair of 48V SMPS in series and wire the two 6AF4 heaters in series to be powered by a 12V SMPS. This would bring PSU costs and size down significantly. Voltage gain here would be about 10 and output impedance should be a little under 2k ohms.

Because resistor loading will still provide a lot of gain, even with a low Mu of 15, this version uses a matching transformer to step down gain and output impedance. Voltage gain here would be 2 or 3 and output impedance should be a couple hundred ohms. Edcor makes affordable candidates for output transformers in this application (WSM series). I’d also look for second hand matchers in the 2:1 to 5:1 range.

As far as a loadline and bias point, the blue blob area looks pretty good to me. Note how low the supply voltages are here. These low voltages make parts both cheaper and smaller. While I like the lower output impedance and fanciness of parafeed, the resistor load would probably sound a little tubier. It would also be simpler, cheaper, and more compact.

Whelp, I seem to have talked myself into it…

Posted on

Stacked SMPS PSU for tubes

I used a 48V switch mode power supply in the El Estudiante headphone amp and am pleasantly surprised with the quiet background and relative simplicity. When it comes to higher voltages though, you will not find many AC/DC switch mode power supplies at vendors like Mouser or Digikey. While a beefy low voltage DC supply could feed a DC/DC booster (see Millet’s 10W booster project and various eBay listings), I’d like to find something that is more easily repeated by others with parts from major PSU manufacturers.

I came across the idea of stacking low voltage SMPS supplies in a couple places and the idea intrigued me as a scalable and affordable approach to creating B+ (see here and here). The Meanwell EPS-15 48 are regulated and isolated AC/DC supplies that sell for about $8. Stacking six of these would supply 300mA at about 300V.

This schematic shows the general outline of what I’d like to try with a single-ended amplifier. The V1 supplies produce the anode to cathode voltage for the output tube. These are referenced about 100V above ground by the V2 supplies. The input tube’s B+ is a combination of the V2 and V3 supplies. All in all, this would call for seven 48V supplies, plus another low voltage supply for heaters. The final cost would be somewhat less than a traditional transformer and CLC filter, but there are more interesting reasons to try this.

All the supply gymnastics make it very easy to direct couple the two stages. In this example, Q1 is a gyrator load and Q2 sets the reference voltage. This would also allow us to drive the output tube into A2 operation. My choice for output tube here would be a 6V6: a really sweet sounding triode that otherwise doesn’t produce much in A1 operation. Power would still be low (around 2W), but that would be plenty for headphones or enough for high-efficiency speaker systems.

Posted on

Phono Preamp Heaters

Heater supplies, even with indirectly heated tubes, are a potential source of hum with high gain circuits like phono preamps. In a grounded cathode gain stage, the tube will amplify any signal it sees between the grid and the cathode. The tube doesn’t particularly care if that is an audio signal or an induced signal from some other part of the build. Indirectly heated tubes have a cathode sleeve around the filament heating it. The close geometry creates a happy little environment for coupling between the two. Eliminating this source of noise may require running heaters on DC rather than AC.

Here’s a simple schematic adapted from something Eli Duttman suggested for his modified RCA phono preamp:

12V dc heaters

This circuit (now on a PCB waiting for a phono build) uses a voltage doubler to turn a common 6.3Vac input into ~16Vdc which is then regulated to 12Vdc by a LM7812. The regulator is limited to 1.5A, but this is probably enough for any sane phono preamp’s heater demands (the pair of 12AX7 in the El Matemático require only 0.3A). This is one way of producing a DC heater supply.

I was recently discussing truly budget-oriented tube phono preamps with another builder. They proposed a $100 parts budget. The first place I’d look to start cutting costs in such a build is on the relatively pricey purpose-built power transformer needed for tube projects. In the case of a simple phono preamp like El Matemático, I’d try the following cost-cutting measures to the power supply:

  • Solid state 1N4007 rectification
  • Use a 115/230V isolation transformer like Triad N-68X in reverse (115V in, 230V out) for B+ @ $16
  • Use a 12V SMPS like Meanwell EPS-15-12 for heaters @ $7
  • Triad C-1X choke @ $10 and 220uF 350V+ caps @ $4 ea as CLC filter
  • Add RC to end of CLC filter to lower B+ and/or clean up residual ripple

We can greatly lower the cost of the B+ supply with the isolation transformer trick but it leaves us without a heater supply. Rather than a separate 6.3V or 12.6V transformer followed by a regulator circuit like the one shown above, I’d be tempted to experiment with a switch mode power supply like this Meanwell unit:

EPS15-12

The EPS15-12 supplies up to 1.25A at 12Vdc with 80mV of ripple (peak to peak). One need just supply it with mains voltage (85-264Vac). Power supplies like this switch at a very high frequency, which is why their transformers can be made so small. If that switching is audible, capacitively coupled between cathode and heater, additional filtering may be needed. Meanwell does not specify the switching frequency, but it’s very likely well above the 20hz-20khz range.

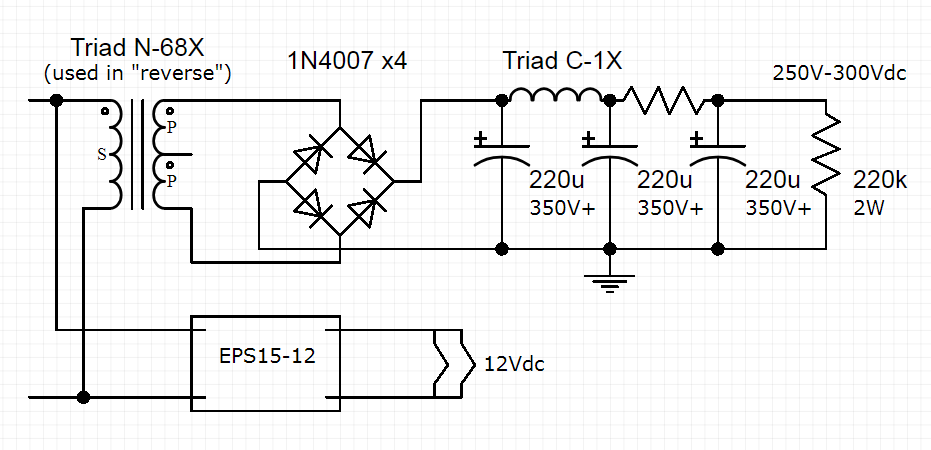

The final, potentially very affordable power supply, would look something like this:

very cheap psu

Posted on

Something for beginners

Pete Millett’s Starving Student was one of the first amps I ever built completely from scratch. Unfortunately, the 19J6 tubes have become rare (or at least no longer dirt cheap) due to all the bright eyed DIYers scooping them up to build amps. I think the world needs another <50V tube amp for beginners, so I’m designing one. Like the original, it’s an oddball tube with a MOSFET buffer and an off-the-shelf power brick (same brick, in fact).

Millett is one of my personal tube heroes. This is a tribute.  Full write up coming soon (and parts values subject to change once tested).
